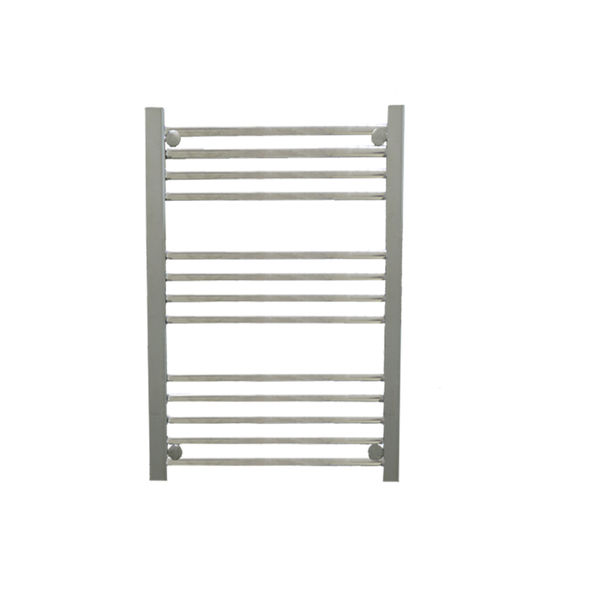

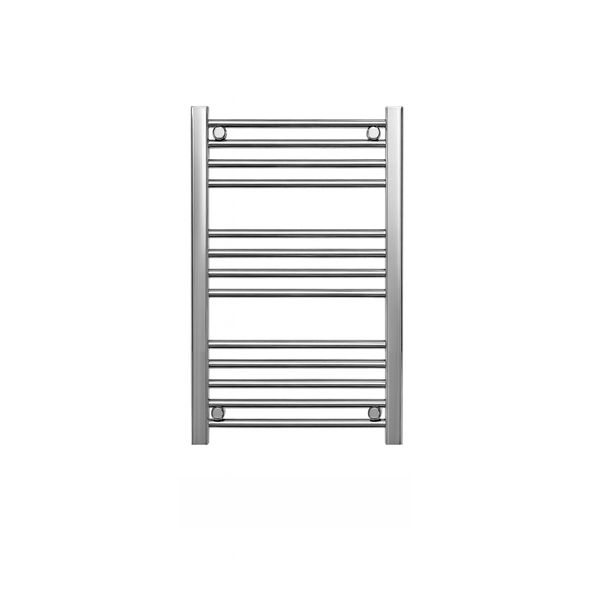

AQ250LS

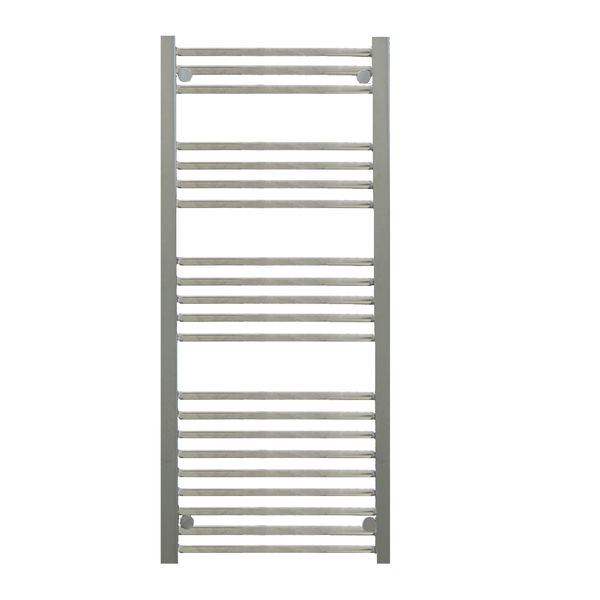

AQ400LS

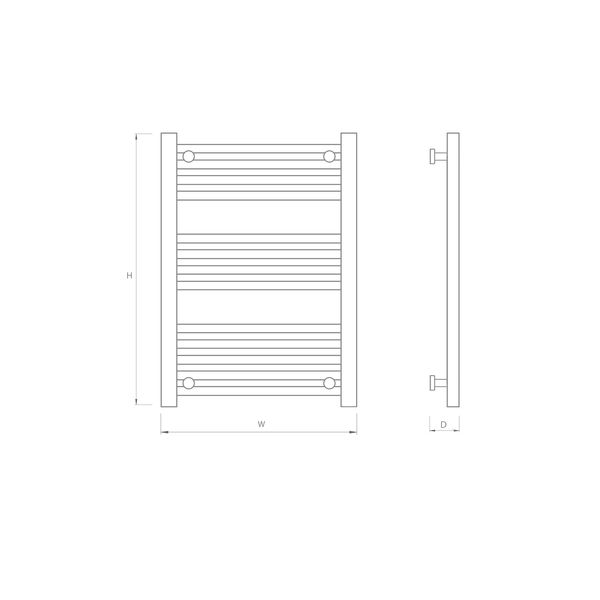

AQ250LS Line Drawing

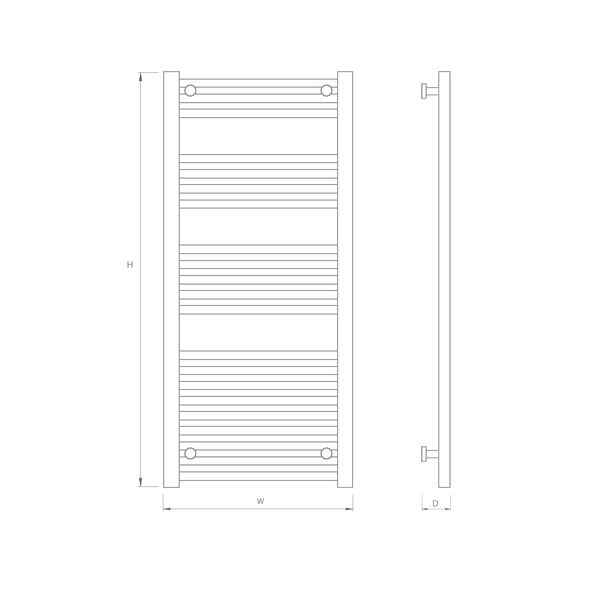

AQ400LS Line Drawing
Aquilo Towel Rail
Straight Ladder Style
250 and 400 W
Usage:
A stylish and modern straight, ladder style electric towel rail in high quality chrome finish. The contemporary, slimline profile will compliment a variety of bathroom applications and is a robust, durable choice.
For use in bathrooms to provide warm dry towels.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Stylish and modern straight ladder design
• High quality chrome finish
• Slimline straight profile
• Electric liquid filled
• 250 W rail has 13 bars
• 400 W rail has 21 bars
• Easy to install
• Robust brackets and fixings supplied
• Reversible cable entry - can be on the left or right
• Adjustable depth fixings from 93mm - 108mm
• Easy to clean finish
Technical Specification
Outer Casing
High polish chrome finish
Controls
None
Safety
Overheat temperature protection.
IP Rating
IP24
Installation
Wall mounting kit included and must be used. Unit can be installed so that the cable entry is on the left or right. Cable enters base of vertical bar.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m), white cable.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (W) | Timer | Current (amps) |
|---|---|---|---|
| AQ250LS | 250 | No | 1.2 |
| AQ400LS | 400 | No | 2 |
| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| AQ250LS | 700 | 500 | 93 - 108 | 8.5 |
| AQ400LS | 1100 | 500 | 93 - 108 | 13.5 |
