Maestro

Air Curtain
3.0 kW

Usage:

Over door fan heater designed for installation above doorways to reduce heat loss from buildings such as shops, restaurants and offices.

Features

Features

• Stylish design over door fan heater
• 3 power settings, 1.5 and 3.0 kW, and fan only option
• Easy to install, with a robust fast fitting wall bracket
• Cable pre-wired
• Wall or ceiling mounted
• Neon power on indicator

Technical Specification

Outer Casing
Powder coated steel

Controls
Power/fan on/off switch.
Two temperature setting switches.

Airflow
254 m3/h

Sound Level
60 dB

Safety
Overheat temperature protection.

IP Rating
IPX0

Installation
Wall mounting kit included for wall or ceiling mounting.

Electrical Connection
Installation must comply with current IEE regulations.

The product should be connected to the fixed wiring of the property via a suitably rated isolating switch with a contact separation of at least 3mm in all poles.

Cable pre-wired (1.5m), cable entry to the back of the unit located centrally.

Class I

Approvals
CE

Standard Warranty
1 year parts or replacement warranty.


Data Tables

Product CodePower (kW)TimerCurrent (amps)
MAC3X3.0No13

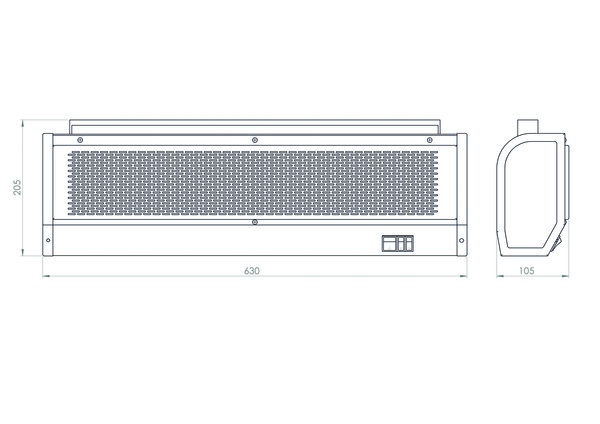

Product CodeHeight (mm)Width (mm)Depth (mm)Weight (kg)
MAC3X2056301055.2
