Taps

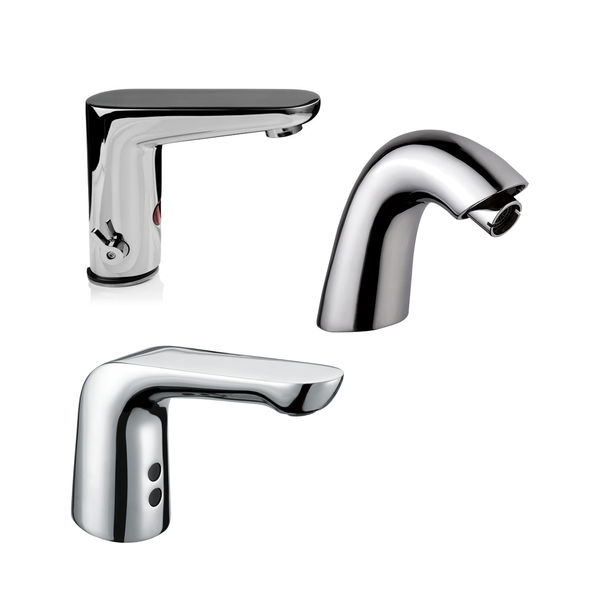

Non-Concussive, Mixer, Automatic Infrared
Usage:
This range of taps is ideal for use with Hyco Rho and Aquila instantaneous water heaters to provide optimum hand washing performance in washroom settings and for use with Hyco Speedflow and Powerflow unvented water heaters.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Sprayhead range of taps all with removable M22/ M24 nozzles
• Reduce water consumption by up to 50% compared to traditional taps by controlling the flow rate
• Save energy by up to 50% compared to traditional taps by reducing the amount of hot water required per hand wash
• Where the taps are used with a Speedflow or Powerflow water heater an optional thermostatic mixing valve is recommended (see Thermostatic Mixing Valve under Hot Water products)
• Rho and Aquila instantaneous water heaters are only intended for use with spray head taps of this type. If traditional taps which do not control the water flow rate are used then optimum performance will not be achieved
• All taps supplied complete with a choice of three tap spray nozzles – 2.0, 2.5 or 3.0 l/m
• Other flow rates available on request
Technical Specification

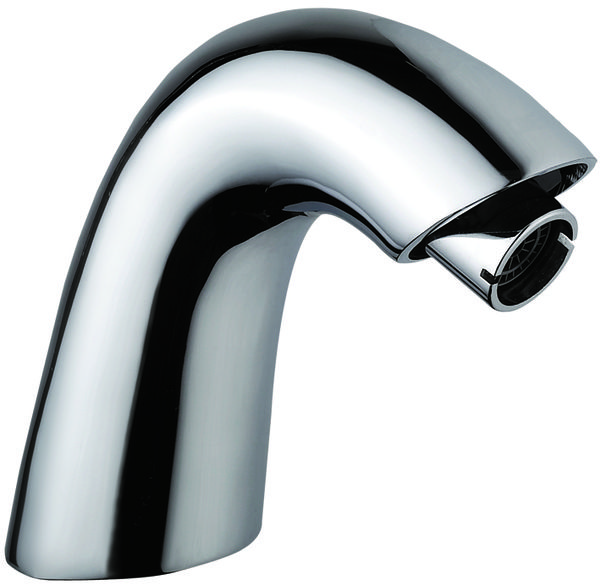

Non-Concussive Tap
Simple ‘push tap’ operation.
Tap functions for a period of time and then closes automatically.
Prevents vandalism and continuous running and saves water.
Use for hot or cold water – blue and red identification rings supplied with each tap.
WRAS approved.
Single Lever Mixer Tap
Simple manual operation by lifting the control lever up and down.
Rotating the control lever clockwise or anti-clockwise reduces or increases the mixed water temperature.

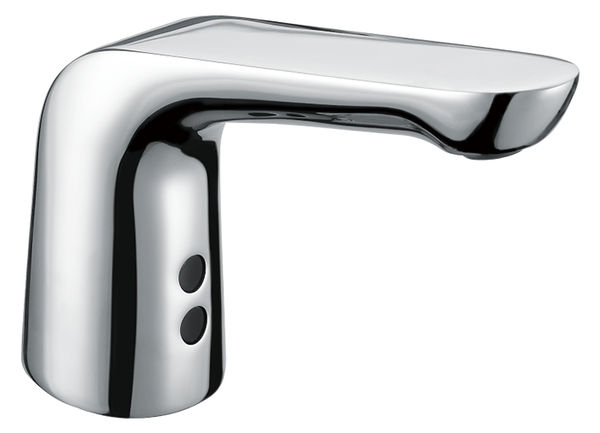

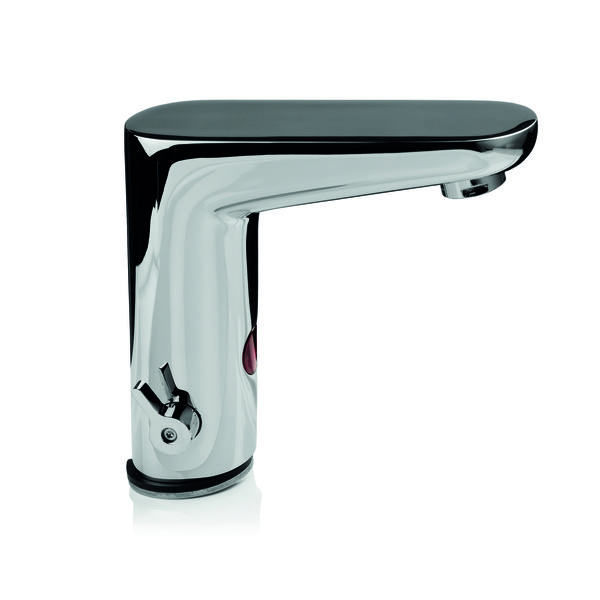

Automatic Infrared (Touch Free) Tap
Hygienic no touch automatic operation.
Dual mains or battery powered operation.
Complete with cable for connection to the power supply.
Usage timer prevents vandalism and continuous running and saves water.
Mixer lever gives option to dispense hot and cold water if required.
WRAS approved.
Standard Warranty
1 year parts or replacement warranty for all tap models.
Data Tables
| Product Code | Description | Reach (mm) |
|---|---|---|
| TAPNC | Non-concussive tap | 110 |
| TAPSLM | Single lever mixer tap | 95 |
| TAPIFR | Automatic touch free tap | 110 |
Tap Spray Nozzle Options
| Product Code | Max Flow Rate (l/m) | Best suited to water heater | Colour Code Identification |
|---|---|---|---|
| IN-TSN-2.5 | 2.5 | 4.4, 6.0 kW Rho | White / Green |
| IN-TSN-3.0 | 3.0 | 9.6 kW Aquila | White / Lilac |
| Product Code | Height (mm) | Diameter (mm) | Reach (mm) | Weight (kg) |
|---|---|---|---|---|
| TAPNC | 140 | 50 | 150 | 0.8 |
| TAPSLM | 160 | 50 | 160 | 1 |
| TAPIFR | 140 | 50 | 150 | 1.7 |
