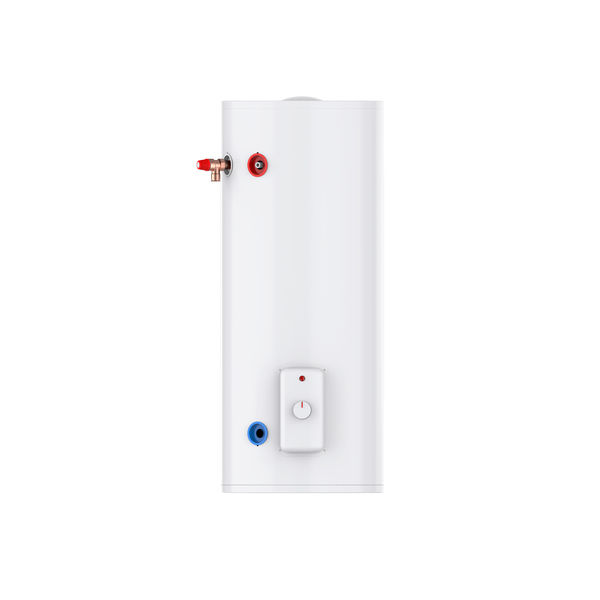

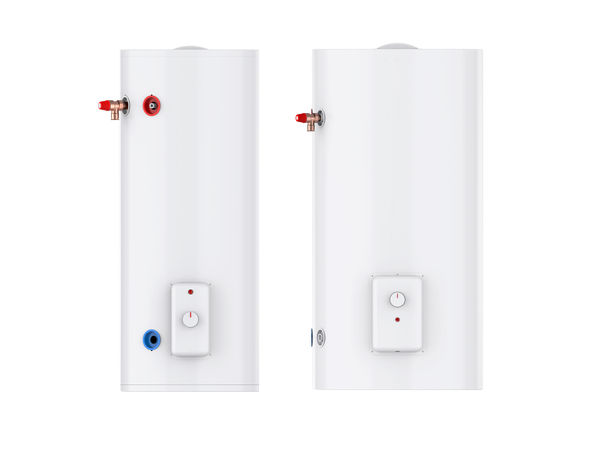

Superflow
Unvented Multipoint Floor Mounted
90 and 140 litre
Usage:
Suitable for hand washing and dish washing where a number of hot water outlets are required such as kitchens, schools, restaurants, washrooms, healthcare environments and offices. The ideal solution for light industrial, commercial and domestic hot water requirements. Can be used for a shower - check that the capacity is suitable for your flow rates and showering time/ frequency.
- Features
- Technical Specifications
- Data Tables
- Energy Efficiency
Features
Features
• Slender slimline design
• Mains pressure flow rates
• Floor standing, no wall mounting necessary
• Can be used with regular taps, including mixers
• 3.0 kW element for fast heat up time
• Element on indicator
• External mechanical temperature control
• Easy inspection and maintenance
• Access to element and thermal cut out beneath the thermostat housing
• Anode located at the top of the unit meaning only partial drain down is required to inspect or replace
• Patented technology ensures incoming cold water does not immediately mix with stored hot water in the tank making more hot water available
• Glass lined tank, 3 year tank warranty
• Comes complete with unvented accessory kit
• Flow Through Kits now available (see Flow Through Kits)
• Optional thermostatic mixing valve available
• Erp rating C
• Cable pre-wired (1.5m), to thermostat housing
Technical Specification
Outer Casing
White powder coated steel
Heating Element
Stainless steel incoloy
Thermostat
Mechanical up to 65°C
Water Tank
Glass lined steel
Anode
Replaceable grey magnesium anode (inspect at least annually or more regularly in scale/ aggressive water conditions)
Insulation
High density polyurethane foam (CFC free)
Safety
Overheat temperature protection (manual reset).
Factory fitted temperature and pressure relief valve (set at 7 bar 90°C).
Pressure reducing valve (set at 3 bar).
Pressure relief valve at 6 bar.
Use with a thermostatic mixing valve to maintain hot water supplied to user at constant, safe temperature.
IP Rating
IPX4
Installation
Floor standing only. Must be installed vertically.
Plan installation carefully to allow sufficient space for all controls and future maintenance.
Unvented Accessory Kit
Supplied kit must be fitted.
Contains expansion vessel with fixing bracket (8L for SR90, 12L for SR140**), inlet group, flexible hose and 2 tundishes.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 1 bar.
Maximum water pressure to pressure reducing valve 12 bar.
Working water pressure 3 bar.
Water Connection
Connects to 15mm copper pipework
Fittings required (not supplied): for 90L 2 x 15mm compression to 1/2" BSP female adaptor, for 140L 2 x 15mm compression to 3/4" BSP female adaptor
Electrical Connection
Installation must comply with current IET regulations.
The product should be connected to the fixed wiring of the property via a suitably rated isolating switch with a contact separation of at least 3mm in all poles.
Approvals
CE, UKCA, KIWA, Building Regulations
Standard Warranty
1 year parts or replacement warranty on electrical components.
3 year tank warranty.
Data Tables
| Product Code | Capacity (litres) | Power (kW) | Heat Up Time (mins)* | Standing Loss (kW/day) |
|---|---|---|---|---|
| SR90 | 90 | 3.0 | 74 | 1.67 |
| SR140 | 140 | 3.0 | 114 | 1.91 |
* Minimum theoretical heat up time for 70% tank capacity from 10°C to 60°C
** Expansion vessel dimensions, 8L H 305mm x D 220mm, 12L H 315mm x D 260mm (excluding threads)
Energy Efficiency
The Energy Related Products (ErP) Directive and Energy Labelling Directive require that from September 2015 all water heaters in scope meet minimum energy performance criteria and have energy labels which provide the energy ration of the product. The classifications range from A++; this being the most efficient and coded in green to a rating of G; this being less efficient and coded in red.
Such ratings provide transparency of efficiency and a comparable benchmark for water heating products, as standardised European Energy Labels are used.

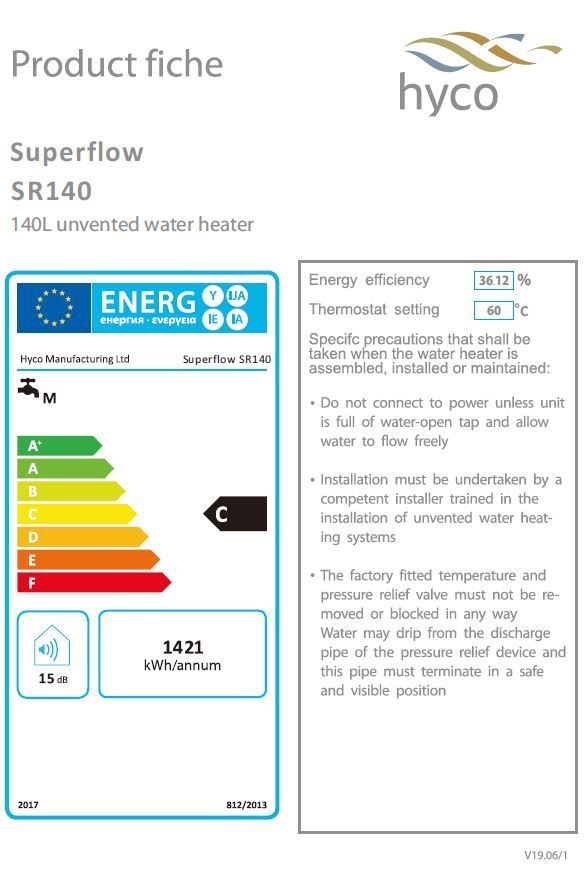

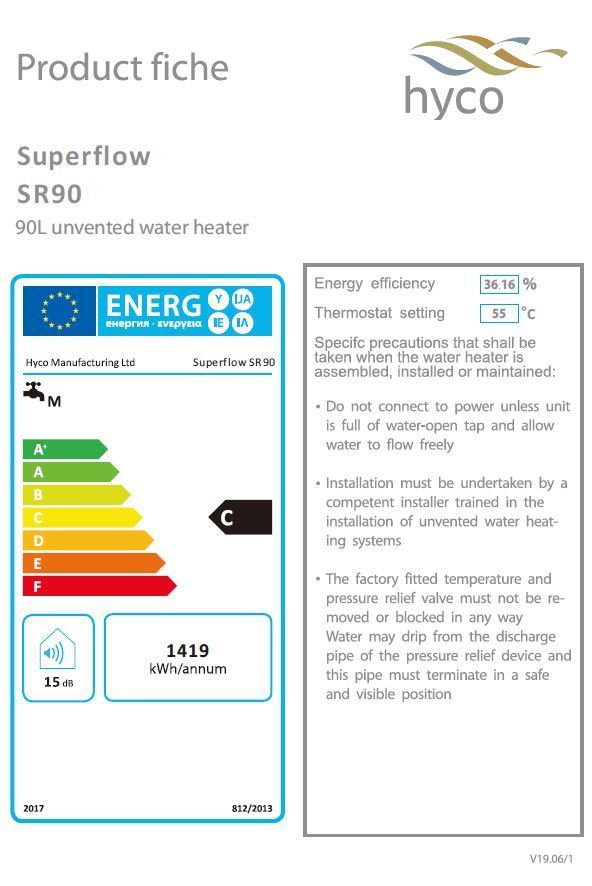

This website contains the energy class for all relevant water heating products. The full energy label and product fiche information for the Superflow range can be found below
