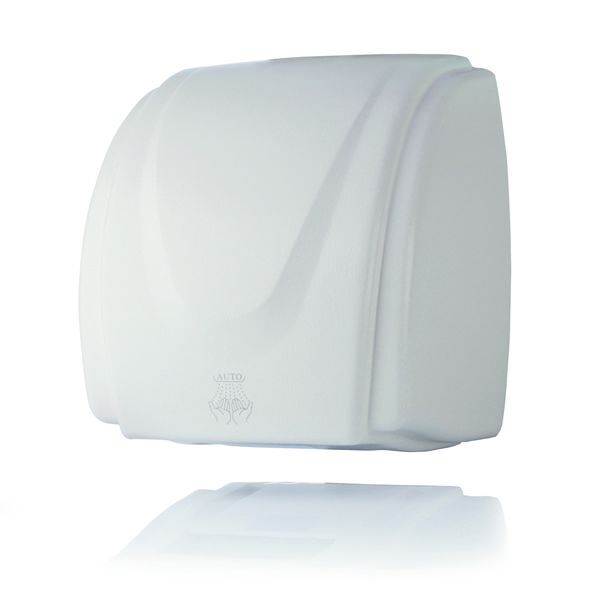

Hurricane
1.8 kW Automatic
Traditional
Usage:
The Hurricane is a traditional hand dryer that combines reliable performance quality with durable construction. A stylish curved design makes this an ideal solution across a variety of applications. Suitable for a wide number of applications including schools, offices, restaurants and shops.
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Traditional style
• Low air speed makes the hand dryer suitable for young school children
• Metal case
• Stylish design in ivory white
• Hygienic automatic operation reduces the risk of spreading germs
• 1.8 kW power rating
• Vandal resistant
Technical Specification
Outer Casing
Die cast aluminium
Enamel coated
Heating Element
1600 W
Motor
200 W
Carbon brush
5600 RPM
Current
8 amps
Air Speed
18 m/s
Air Volume
147 m3/h
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IPX1
Installation
Full fixing pack supplied.
Cable entry bottom right at the base of the unit
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 12.5 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| HD1800 | Ivory white | 1.8 | 73 | 25 | 18 |

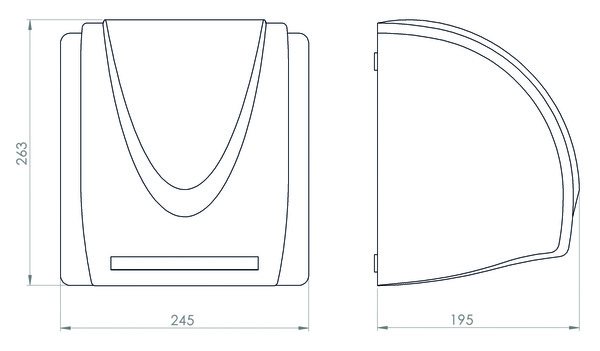

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| HD1800 | 263 | 245 | 195 | 3.4 |
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| HD1800BRKT | Wall mounting brackets for Hurricane 1800 | HD1800 |
| HD1800COV | Cover for Hurricane 1800 | HD1800 |
| HD1800ELEMENT | 1.8kW Element for Hurricane 1800 | HD1800 |
| HD1800PCB | PC Board including integral sensor for Hurricane 1800 | HD1800 |
| HD1800SCREWPACK | Wall mounting screw pack (inluding bracket) for Hurricane 1800 | HD1800 |
