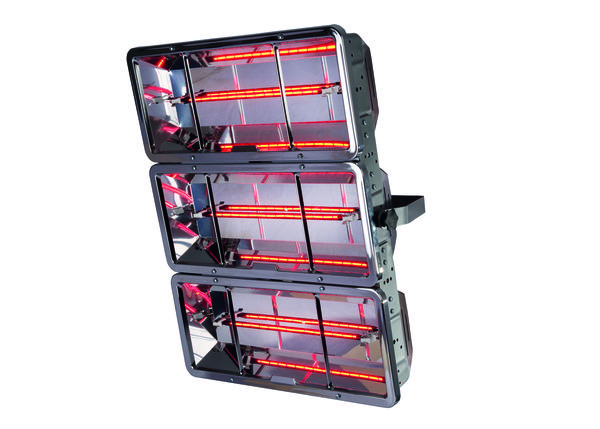

Sun Prince Quartz
Halogen Infrared Heater
Chrome Chassis, 1.0 to 4.5 kW
Not suitable for outdoor use
Usage:
Allows heating of targeted areas
- Features
- Technical Specifications
- Data Tables
Features
Features
• Allows heating of targeted areas
• Quartz halogen lamps operate at a very high temperature, converting almost all the electrical energy into short wavelength infrared radiation
• Stylish and robust construction
• Silent operation
• Heaters are single, double or triple chassis depending on number of lamps included (see table)
• Lamps made from high temperature resistant quartz glass and last an average of 7000 hours
• Gold and ruby lamps available
• For use in unenclosed spaces
• Instantaneous cost effective heating
• Wall mounted – secure bracket included
• Lamps must not be handled with bare hands
Technical Specification
Outer Casing
Grey powder coated steel chassis, chrome plated safety guard.
IP Rating
IPX0
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a suitably rated isolating switch with a contact separation of at least 3mm in all poles.
Optional soft start controllers are available.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty (excluding lamps).
Data Tables
| Product Code | Power (kW) | Lamp Colour* | Lamp Qty x Code |
|---|---|---|---|
| SP1000HL | 1.0 | Gold | 1 x L1000CGL |
| SP1500HL | 1.5 | Ruby | 1 x L1500CL |
| SP2000HL | 2.0 | Gold | 1 x L2000CGL |
| SP3000HL | 3.0 | Ruby | 2 x L1500CL |
| SP4000HL | 4.0 | Gold | 2 x L2000CGL |
| SP4500HL | 4.5 | Ruby | 3 x L1500CL |
*Gold lamps are available for SP1500H, SP3000H and SP4500H at an extra cost

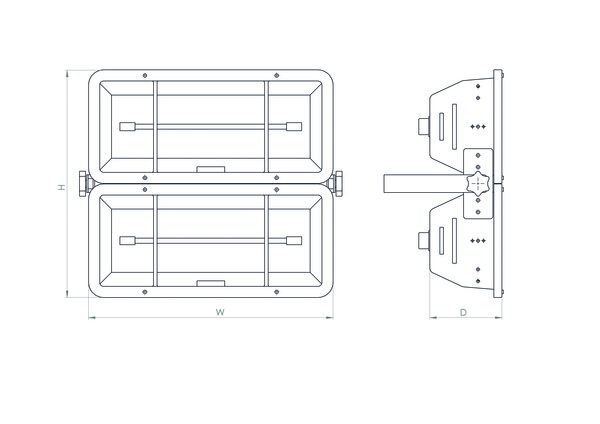

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| SP1000HL | 198 | 474 | 141 | 3.1 |
| SP1500HL | 198 | 474 | 141 | 3.1 |
| SP2000HL | 198 | 474 | 141 | 3.1 |
| SP3000HL | 398 | 474 | 141 | 5.4 |
| SP4000HL | 398 | 474 | 141 | 5.4 |
| SP4500HL | 598 | 474 | 141 | 7.6 |
