Quartz Controller
Soft Start
3.0 kW
Usage:
Soft start heating controllers are designed to work alongside all makes of quartz halogen infrared heater.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Save energy by ensuring that halogen heaters are only on when you need them to be
• Can control up to 3.0 kW of quartz heating load
• Protect switchgear from high inrush currents when the lamps are first switched on from cold
• Weatherproof for outdoor use
• Run time adjustment from 1 – 99 minutes
• Temperature adjustment – the unit will not operate if ambient temperature above threshold
• Easy to install
• PIR model - automatically activated by motion from up to 5m and will remain on for the pre-set time, continuous movement will reset the timer

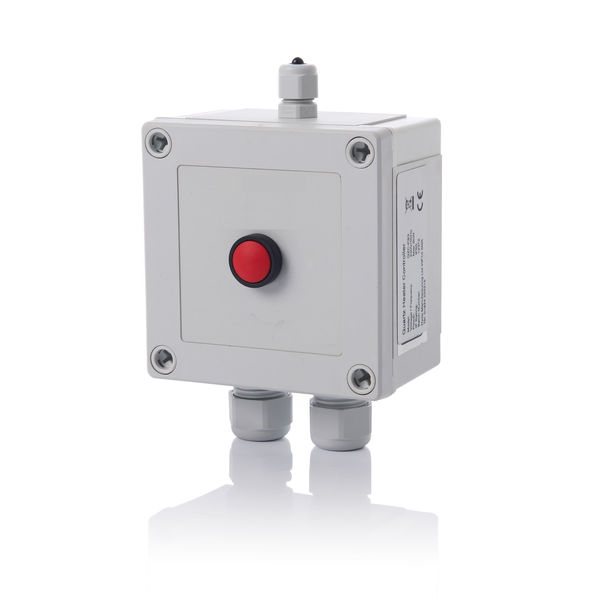

• Push button model model - automatically activated by motion from up to 5m and will remain on for the pre-set time, continuous movement will reset the timer
Technical Specification
Outer Casing
ABS
Switching Capacity
3.0 kW maximum
13 amps
Current Consumption
(control circuit)
2.0 W (10mA max)
Lamp On-Time
1 – 99 minutes
Gland Diameter
20mm
IP Rating
IP65
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a suitable rated isolating switch with a contact separation of at least 3mm in all poles.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Operating Temp (°C ) | Terminals (mm2) |
|---|---|---|---|
| QZC-PIR3 | Up to 3.0 kW | 2 to 60 | 6 |
| QZC-PB3 | Up to 3.0 kW | 2 to 60 | 6 |

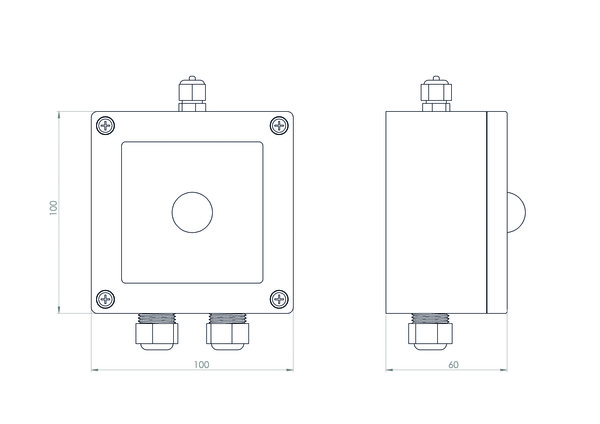

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| QZC-PIR3 | 100 | 100 | 60 | 0.5 |
| QZC-PB3 | 100 | 100 | 60 | 0.5 |
