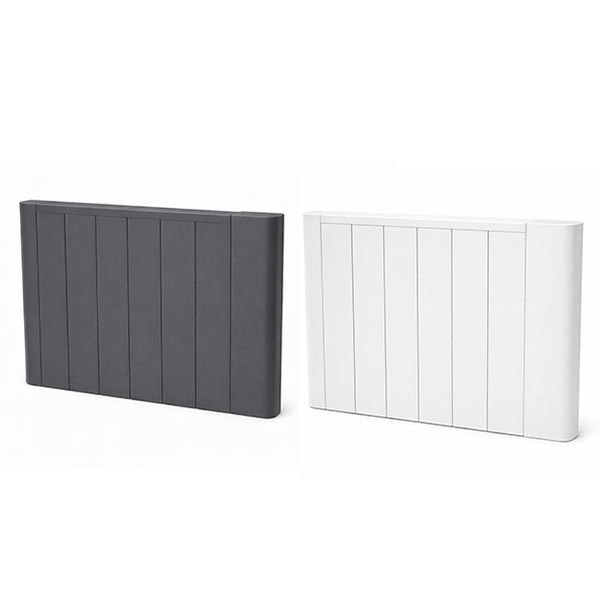

Evora
Wi-Fi Aluminium Panel Heater
0.6, 0.9, 1.5 and 2.0 kW
Usage:
A stylish and durable electric panel heater with Wi-Fi control. Available in white and anthracite finish. Heating can be conveniently managed on the go via the Smart Life app and energy efficient features reduce electricity consumption.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Classic, horizontal panel design
• Instant heat, fast response convection heater
• Precision thermostat accurately targets room temperature
• Ecodesign compliant
• Available in 0.6, 0.9, 1.5 and 2.0 kW
• Wi-Fi control
• 24/7 daily and weekly programming using the Smart Life app
• Manual operation and run back timer using control panel
• Lightweight aluminium construction suitable for low weight bearing walls
• Power on display
• Open window detection to reduce energy wastage
• Full or half power setting
• Integrated child lock
• Slimline depth - only 60mm
• White or anthracite finish
• Product codes W - white, A - anthracite
Technical Specification
Outer Casing
Powder coated aluminium
Element
Aluminium x-shaped heating element
Controls
Wi-Fi controls
Safety
Overheat temperature protection.
IP Rating
IPX0
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IET regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m), white cable (white model), black cable (anthracite model), entry to the bottom right of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
2 years parts or replacement warranty.
Data Tables
| Product code | Power (kW) | Wi-Fi | Current (amps) |
|---|---|---|---|
| EV600W/ A | 0.6 | Yes | 2.6 |
| EV900W/ A | 0.9 | Yes | 3.9 |
| EV1500W/ A | 1.5 | Yes | 6.5 |
| EV2000W/ A | 2.0 | Yes | 8.7 |
| Product code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| EV600W/A | 535 | 430 | 60 | 3 |
| EV900W/ A | 535 | 590 | 60 | 4 |
| EV1500W/ A | 535 | 870 | 60 | 6 |
| EV2000W/ A | 535 | 1010 | 60 | 7 |
