Avignon - Wi-Fi
Wi-Fi Electric Ceramic Radiator
0.5, 1.0, 1.5 and 2.0 kW
Usage:

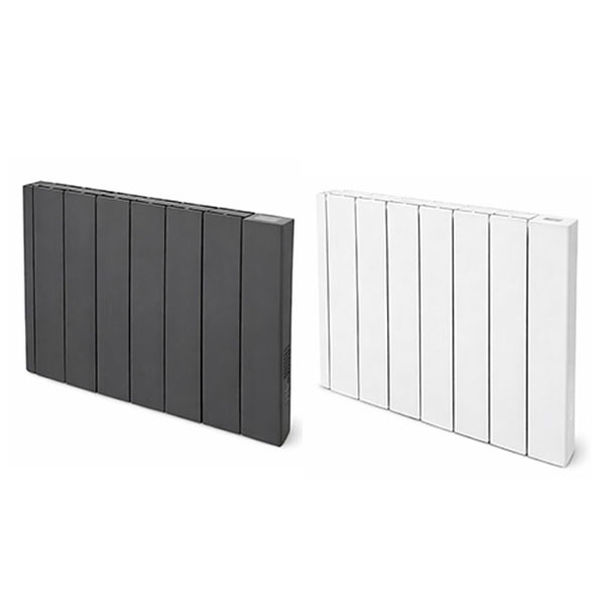

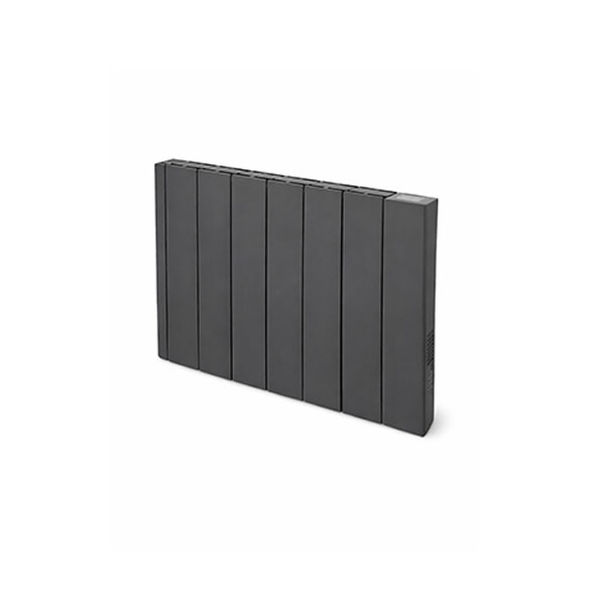

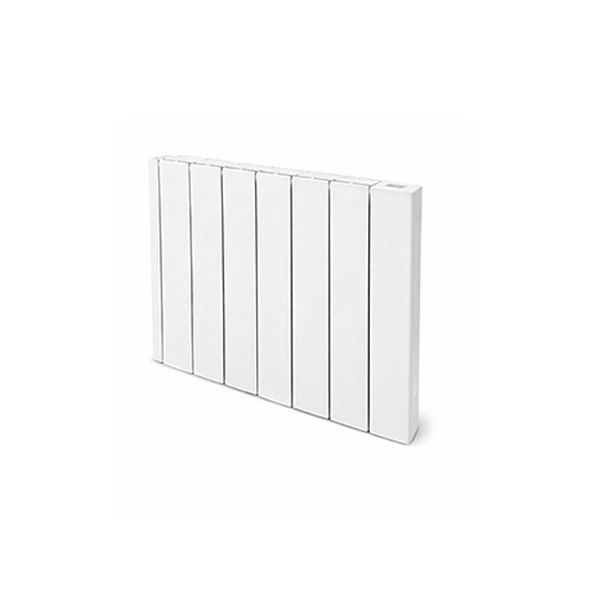

A stylish and elegant designer electric cderamic radiator in a modern panel style, with timer module and Wi-Fi control. Available in white and anthracite finish. Heating can be conveniently managed on the go via the Smart Life app and energy efficient features reduce electricity consumption.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Modern, horizontal panel design
• Available in 0.5, 1.0, 1.5 and 2.0 kW
• Ecodesign compliant
• Stylish timer module and Wi-Fi control
• 24/7 daily and weekly programming
• Convenient smart operation on the go using the Smart Life app
• Open window detection to reduce energy wastage
• Power on display
• Ceramic element
• Frost protection function set at 7°C
• Integrated child lock
• No plumbing, no problem
• Product codes with A - anthracite, W - white
Technical Specification
Outer Casing
Die cast aluminium
Fins
Die cast aluminium
Element
Ceramic element
Controls
Timer module and Wi-Fi controls
Safety
Overheat temperature protection.
IP Rating
IP24
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IET regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.4m), grey cable, entry to the bottom right of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
3 years parts or replacement warranty.
Data Tables
| Product code | Power (kW) | Wi-Fi | Current (amps) |
|---|---|---|---|
| AV500W/ A | 0.5 | Yes | 2.2 |
| AV1000W/ A | 1.0 | Yes | 4.3 |
| AV1500W/ A | 1.5 | Yes | 6.5 |
| AV2000W/ A | 2.0 | Yes | 9.0 |
| Product code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| AV500W/ A | 568 | 431 | 100 | 9.7 |
| AV1000W/ A | 568 | 531 | 100 | 11.7 |
| AV1500W/ A | 568 | 631 | 100 | 13.9 |
| AV2000W/ A | 568 | 880 | 100 | 18.3 |
