Alize

S Shaped Towel Rail
50 and 80 W

Usage:

An electric towel rail for use in bathrooms to provide dry warm towels.

Features

Features

• Traditional s shaped design

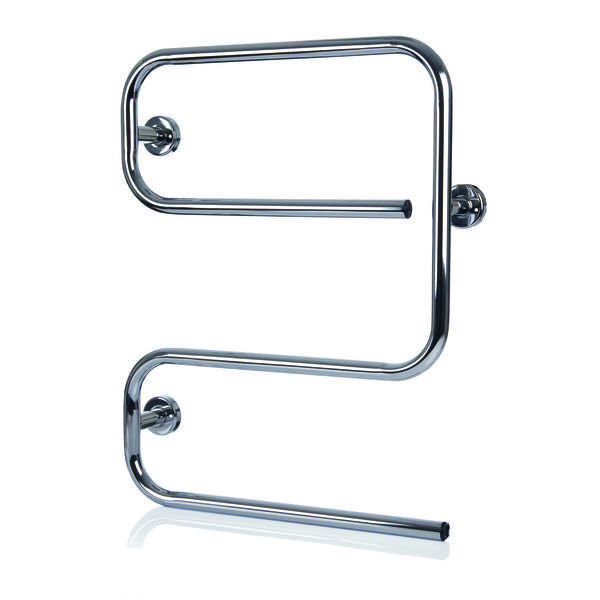

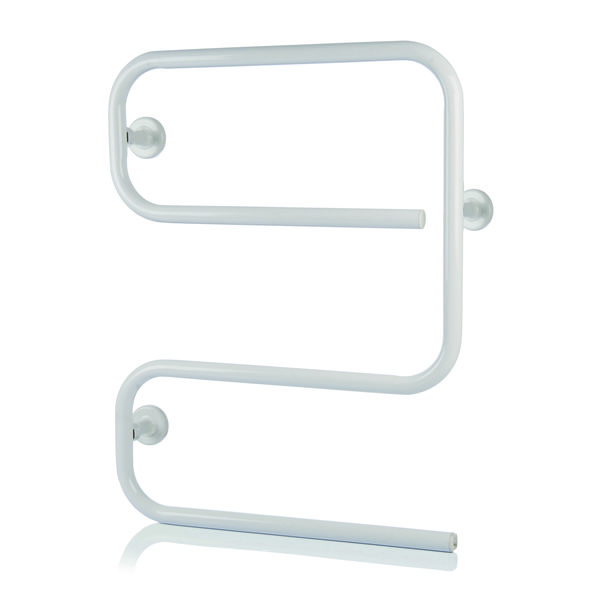

• Available in 50 W (chrome) and 80 W (white)
• Rapid heat up
• Robust mounting brackets included
• Lightweight and easy to install

Technical Specification

Outer Casing
AL80SW
– white enamel coated steel
AL50SC
– chrome plated steel

Controls
None

Safety
Overheat temperature protection.

IP Rating
IPX4

Installation
Wall mounting kit included and must be used.


Electrical Connection
Installation must comply with current IEE regulations.

The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.

Cable pre-wired (1.5m), white cable entry to the bottom right of the towel rail.

Class I

Approvals
CE

Standard Warranty
1 year parts or replacement warranty.

Data Tables

Product CodePower (W)FinishCurrent (amps)
AL80SW80White0.3
AL50SC50Chrome0.2

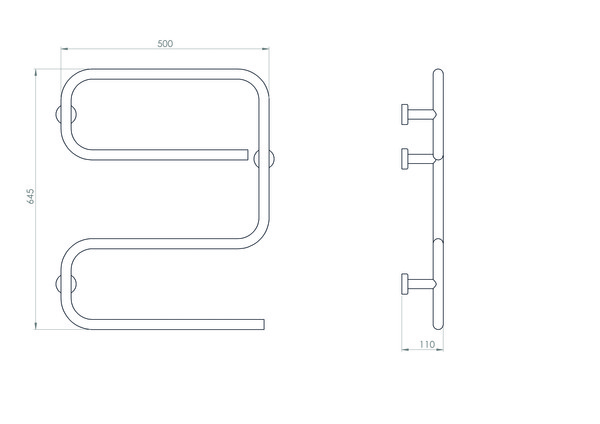

Product CodeHeight (mm)Width (mm)Depth (mm)Weight (kg)
AL80SW6455001101.6
AL50SC6455001101.6
