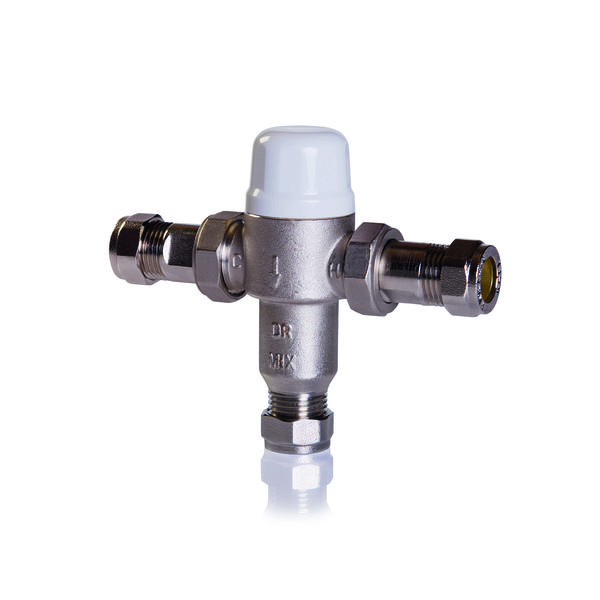

Thermostatic Mixing Valve
Unvented Accessory
TMV15-1
Usage:
For use with the Speedflow or Powerflow unit, where maintaining water supply at a safe and constant temperature is necessary. Ideal for use in many applications including schools, hospitals, public washrooms, restaurants and office and commercial kitchens.
Delivers safe hot water to basins, baths and showers.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Allows water to be stored at high temperatures and blended with cold water to a pre-set outlet temperature
• Maintains water supply at a safe and constant temperature
• Allows extension of effective capacity by mixing high temperature water with cold to achieve the pre-set temperature level
• Allows water to be safely stored above 60°C
• Failsafe design
• Temperature setting range 35 – 46°C
• Temperature accuracy ± 2°C
• Lockable control knob with unique key to prevent unauthorised temperature adjustment
Technical Specification
Installation
Install on the hot outlet of the water heater, with a separate feed from the cold mains supply.
Plumbing
Must be installed by a suitably qualified person.
Water Connection
Hot and Cold inlet 2 x 15mm compression.
Mixed Outlet 1 x 15mm compression.
Fittings required (not supplied): none.
Maximum inlet temperature 85⁰C.
Maximum inlet pressure ratio (H/C or C/H) 5:1.
Minimum temp difference between the inlet hot water and the outlet mixed water for fail safe 10⁰C.
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Temperature Setting Range (°C) | Cold Water Connection (BSP) | Failsafe |
|---|---|---|---|
| TMV15-1 | 35 - 46 | 15mm compression | Yes |

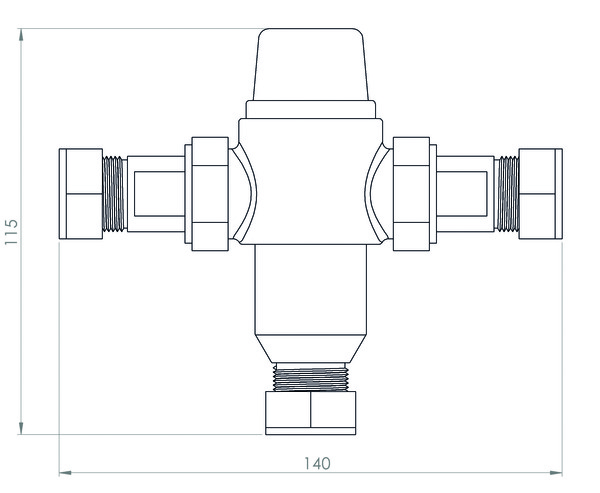

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|
| TMV15-1 | 115 | 140 | 37 | 0.5 |
