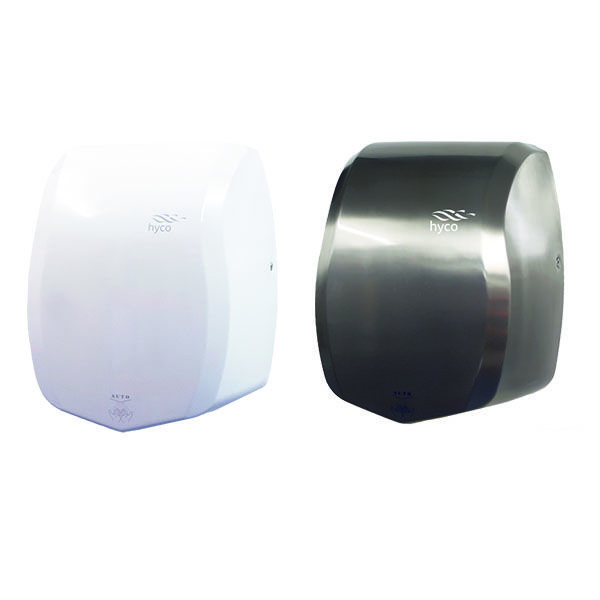

New - Prism

0.9 kW Automatic
Energy Efficient

Usage:

Suitable for many public washroom applications including restaurants, schools, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. A modern stylish hand dryer that will effortlessly compliment a variety of interior styles. The Prism is one of our top 4 hand dryers in terms of energy efficiency.

Features

Features

• Smooth lines and sleek design
• High speed giving fast drying times
• Compact stylish design
• Saves energy relative to traditional hand dryers from reduced drying times
• Low 0.9 kW power rating
• Tailor output to meet your specific needs
• Element on/off switch allows power output to be reduced to 0.65 kW
• High quality stainless steel case

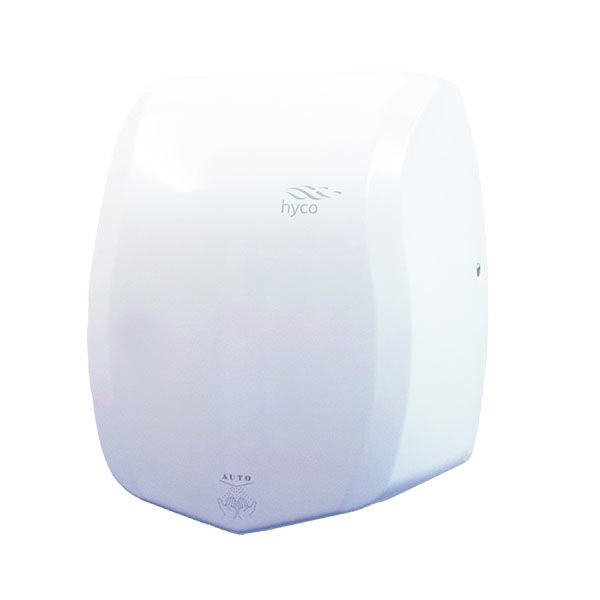

• Available in white or brushed stainless steel
• Vandal resistant
• Blue dry zone indicator

Technical Specification

Outer Casing
Stainless steel

Heating Element
250 W - Option to switch off

Motor
650 W

Current
4 amps

Air Speed
89 m/s

Air Volume
105 m³/h

Operation
Touch free automatic.

Safety
Overheat temperature protection.

Safety timer prevents continuous running.

IP Rating
IP22

Installation
Full fixing pack supplied.

Cable entry in the lower left rear corner.

Electrical Connection
Installation must comply with current IEE Regulations.

The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.

Cable pre-wired (1m).

Class I

Approvals
CE

Standard Warranty
3 year parts or replacement warranty.

Data Tables

energy efficiency
30 p per 1000 dries
power consumption 2.6 W per 1000 dries

Product CodeFinishPower (kW)Sound Level (dB)Dry Time (seconds)Air Speed (m/s)
PRMWWhite0.65 - 0.98010 - 1589
PRMBSSStainless steel0.65 - 0.98010 - 1589

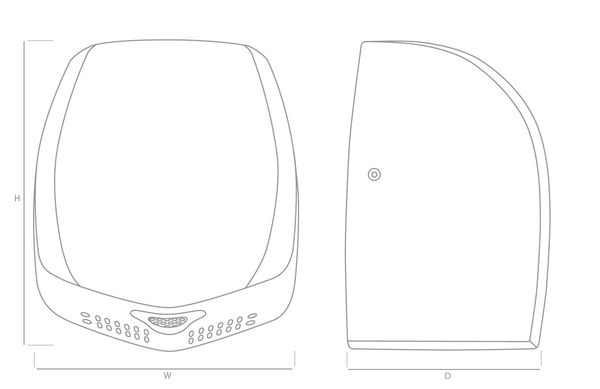

Product CodeHeight (mm)Width (mm)Depth (mm)Weight (kg)
PRMW3002501693.4
PRMBSS3002501693.4
