New - Blade

1.85 kW Automatic
Energy Efficient

Usage:

A modern stylish design suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. A built in HEPA filter and UV sterilisation technology help reduce the development of bacteria making this an idea solution for speciality markets where regulatory and compliance guidelines influence product specification. The Blade is one of our top 4 hand dryers in terms of energy efficiency.

Features

Features

• Modern stylish design
• Intelligent ergonomic construction
• High speed giving fast drying times
• Built in HEPA filter and UV sterilisation technology reduce the development of bacteria
• Intelligent temperature control - heating element switches off when room temperature is above 25°C
• Robust design ensures durability and reliability
• Brushless motor, long life span
• Automatic double sided blades
• 1.85 kW power rating
• Option to switch heating element off to reduce power
• Choose from high (700 W) or low (600 W) air speed
• Minimum power rating 0.6 kW

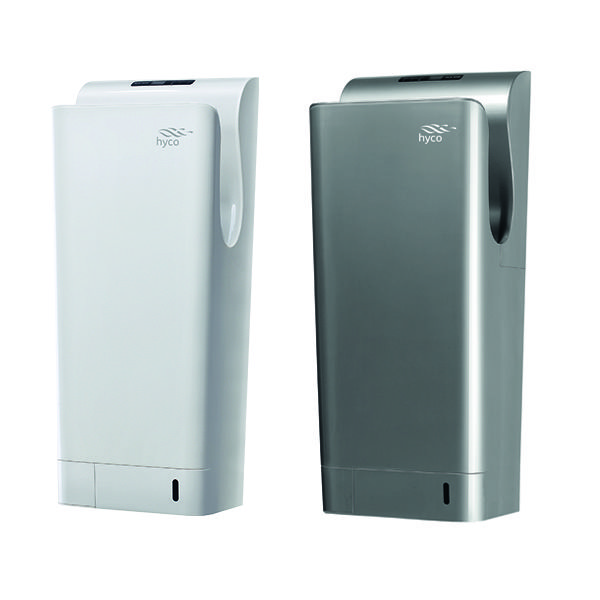

• Available in white and silver
• Integral drain tank with level window
• Vandal resistant
• Blue dry zone indicator

Technical Specification

Outer Casing
Easy clean, high impact ABS

Heating Element
1150 W - Option to switch off

Motor
Min 600 W Max 700 W
DC brushless

Current
8 amps

Air Speed
95 m/s

Operation
Touch free automatic.

Safety
Overheat temperature protection.

Safety timer prevents continuous running.

IP Rating
IPX4

Installation
Full fixing pack supplied.

Fixing template provided.

Cable entry in the lower left rear corner.

Optional concealed entry if desired.

Electrical Connection
Installation must comply with current IEE Regulations.

The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.

Class I

Approvals
CE

Standard Warranty
3 years parts or replacement warranty.

Data Tables


energy efficiency
30 - 60 p per 1000 dries
power consumption 2.5 - 5.1 W per 1000 dries

Product CodeFinishPower (kW)Sound Level (dB)Dry Time (seconds)Air Speed (m/s)
BLADEWWhite0.6 - 1.857010 - 1395
BLADESSilver0.6 - 1.857010 - 1395
Product CodeHeight (mm)Width (mm)Depth (mm)Weight (kg)
BLADEW7003002159.1
BLADES7003002159.1
