Blade
1.6 kW Automatic
Energy Efficient
New model
Usage:
A modern stylish design suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. A built in HEPA filter helps reduce the development of bacteria making this an ideal solution for speciality markets where regulatory and compliance guidelines influence product specification. The blade is one of our most energy efficient hand dryers.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Modern stylish design
• Intelligent ergonomic construction
• High speed giving fast drying times
• Built in HEPA filter helps reduce the development of bacteria
• Intelligent temperature control - heating element switches off when room temperature is above 25°C
• Robust design ensures durability and reliability
• 1.6 kW power rating

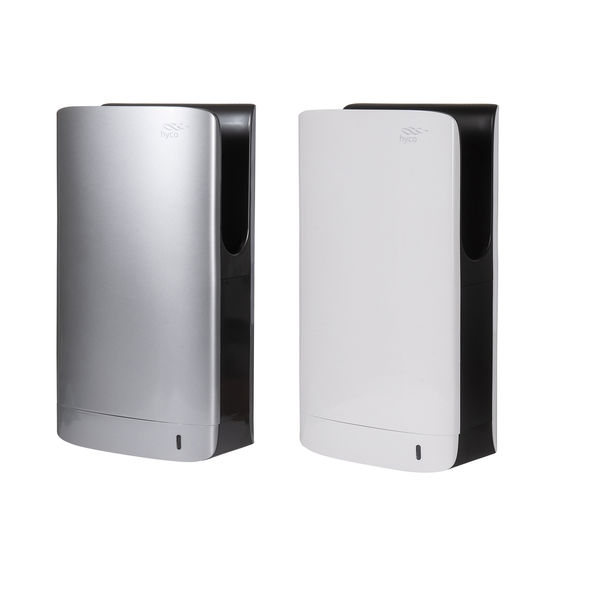

• Available in white and silver
• Integral drain tank with level window
• Vandal resistant
• Blue drying indicator
Technical Specification
Outer Casing
Easy clean, high impact ABS
Heating Element
750 W
Motor
Brush motor
Current
7 amps
Air Speed
92 m/s
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IP24
Installation
Full fixing pack supplied.
Fixing template provided.
Cable entry in the lower left rear corner.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Class II
Approvals
CE, UKCA
Standard Warranty
3 years parts or replacement warranty.
Data Tables
| Product Code | Finish | Power (kW) | Sound level (dB) | Dry time (seconds) | Air speed (m/s) |
|---|---|---|---|---|---|
| BLADEWH | White | 1.6 | 70 | 10 - 13 | 92 |
| BLADESL | Silver | 1.6 | 70 | 10 - 13 | 92 |
