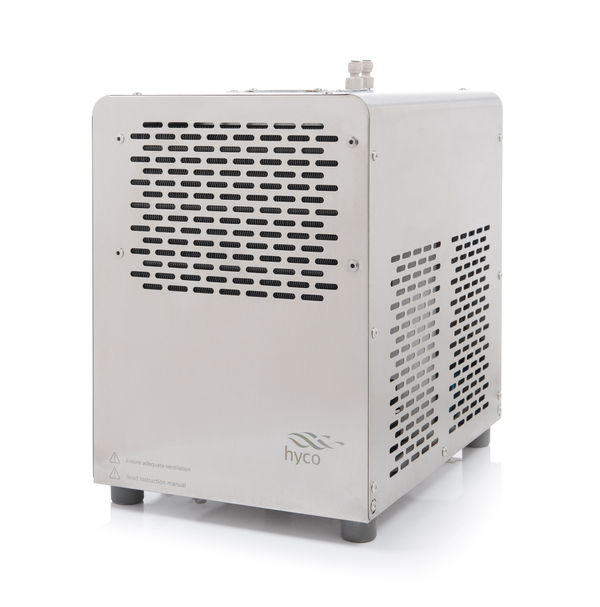

Sapphire Water Chiller

Undersink

Usage:

Discrete undersink water chiller to be used with a counter mounted tap and filter to provide instant, high quality chilled drinking water.

Features

Features

• Add to your Zen Spa package to provide boiling and chilled water through your 2 in 1 Zen Spa tap
• Team with one of our Zen Ice or Crystal Pure drinking water taps for chilled drinking water solutions
• Designed to fit in a standard kitchen undersink cupboard
• In office environments avoids the need for space to be taken up by a floor standing chiller unit
• Simple to use
• Chill capacity 20 litres or 120 glasses per hour (glass 167 ml)
• 3 litres immediate draw off
• Flow rate 2 lpm when chiller used with Zen tap and connected to F1T filter
• Plumbed in system gives reduced costs over bottle fed coolers - connects directly to the mains water supply
• Never run out of water
• Chilled water temperature adjustable from 4°C to 10°C
• All our taps for use with the Sapphire chiller are suitable for filling sports bottles and carafes
• Consider the Zen Font with Drain for a stylish sleek solution when mounting the tap over a sink is not possible or desired (see Zen Font with Drain)

Technical Specification

Outer Casing

Metal

Capacity
120 glasses per hour (based on 167 ml glass)

Maintenance
Sanitise every 3 - 6 months.

Change drinking water filter approximately every 6 months.

See product instructions for full maintenance requirements.

Refrigerant Type
R134A

IP Rating
IP20

Power (kW)
0.2

Current (amps)
0.9

Installation
Chilling requires the ambient temperature to be between 10°C and 38°C.

Plumbing
Must be installed by a suitably qualified person.

Minimum water pressure 1 bar.

Maximum water pressure 3 bar. If higher than this a pressure reducing valve is required.

Electrical Connection
Supplied with a pre-wired (1.85m) black kettle lead cable BS plug.

Approvals
CE, WRAS

Standard Warranty
2 years parts or replacement warranty.

Data Tables

Product CodeChill Capacity (litres/hour)Sparkling
SAPUC120No

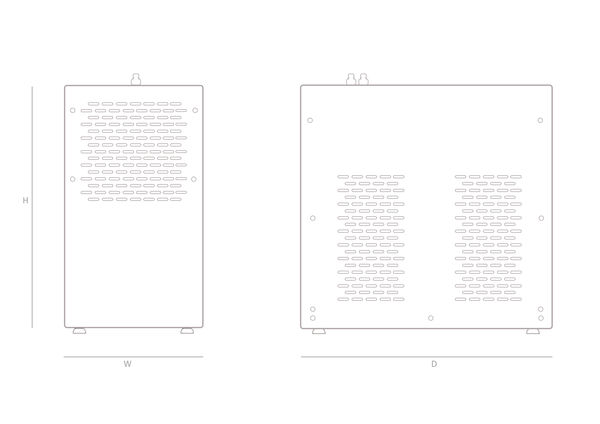

Product CodeHeight (mm)Width (mm)Depth (mm)Weight (kg)
SAPUC137026536013
