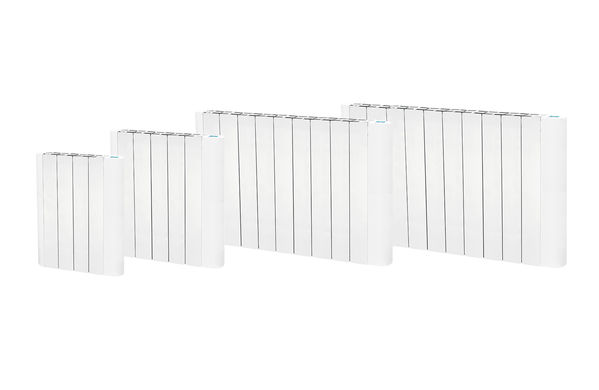

Avignon Group
0.6 kW
0.9 kW
1.5 kW
1.8 kW
Avignon
Electric Radiator
0.6, 0.9, 1.5 and 1.8 kW
Usage:
A stylish, modern fixed heating solution that is suitable for application in both home and office environments and features a slimline, curved design.
- Features
- Technical Specifications
- Data Tables
Features
Features
• Slimline, modern, curved design
• Available in 0.6, 0.9, 1.5 and 1.8 kW
• Ecodesign compliant
• High precision digital thermostat accurate to the nearest degree
• 24/7 LCD timer
• 2 user set temperature settings: peak for whilst the room is occupied and off peak (typically night or frost protection)
• Adjustable temperature range 10 - 35°C
• Open window detection to reduce energy wastage
• Ceramic heating element and dry thermal technology
• Radiant and convection heat
• Choose from pre-set schedules or create your own to meet specific lifestyle requirements
• Thermal safety protection
• Frost protection function set at 7°C
• Wall mounted - secure bracket included
• Integrated child lock
• White finish
Technical Specification
Outer Casing
Die cast aluminium
Fins
Die cast aluminium
Controls
Digital LCD display, controls and screen.
Safety
Overheat temperature protection.
IP Rating
IP20
Installation
Wall mounting kit included and must be used.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.4m), grey cable, entry to the bottom right of the unit.
Class I
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | Timer | Current (amps) | Number of Fins |
|---|---|---|---|---|

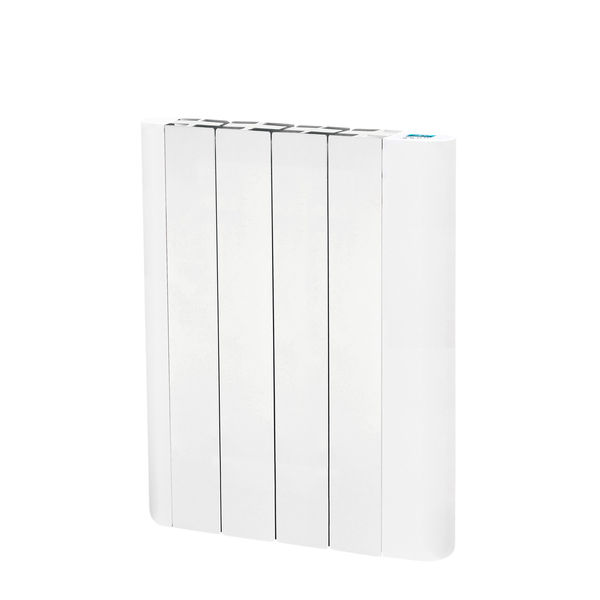

| AVG600T | 0.6 | Yes | 2.6 | 4 |
| AVG900T | 0.9 | Yes | 4.4 | 5 |

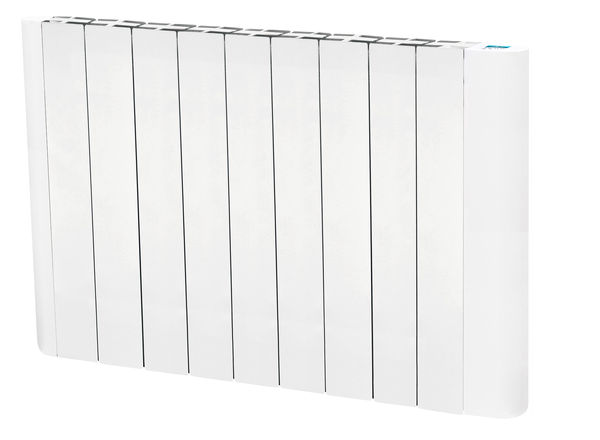

| AVG1500T | 1.5 | Yes | 6.5 | 9 |
| AVG1800T | 1.8 | Yes | 8.7 | 10 |

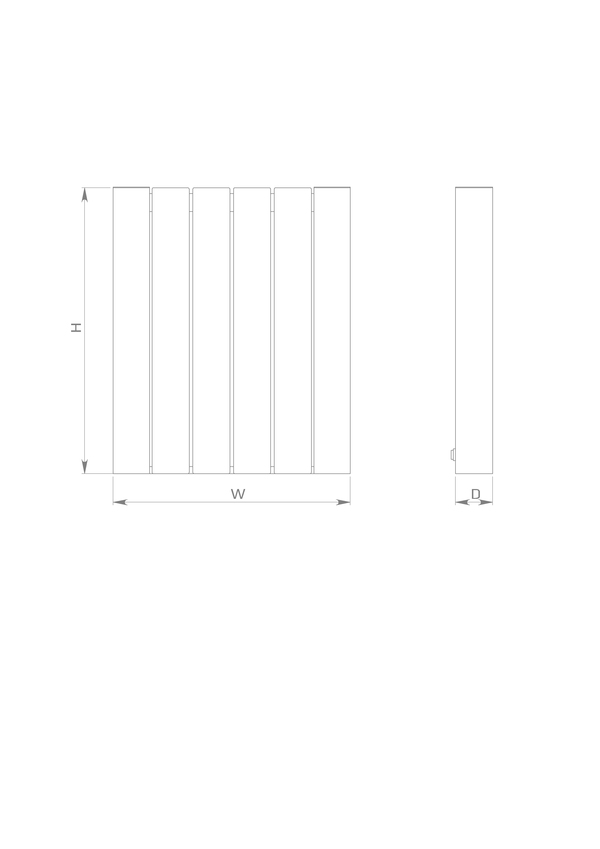

| Product Code | Height (mm) | Width (mm) | Depth (mm)* | Weight (kg) |
|---|---|---|---|---|
| AVG600T | 575 | 480 | 80 | 8.5 |
| AVG900T | 575 | 560 | 80 | 10 |
| AVG1500T | 575 | 880 | 80 | 15.5 |
| AVG1800T | 575 | 960 | 80 | 19 |
*Depth excludes bracket. For depth including bracket add 30 mm.
