Wave
Instantaneous Hand Wash
2.84 kW, Manual or Automatic
Usage:
Designed for light hand washing at a single basin.
Click here to view our Wave Key Points Card
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Unlimited hot water for light hand washing at a single washroom basin
• Designed and assembled in the UK
• Stylish and compact ergonomic design
• Energy efficient – heats water instantly at point of use so no long pipe runs and no standing heat losses
• 2.84 kW element
• Cost effective hot water for hand washing
• Integral inlet tap and swivel 200mm spray arm
• Optimised spray head to prevent splashing
• Durable easy to clean cover
• Simple to install and use

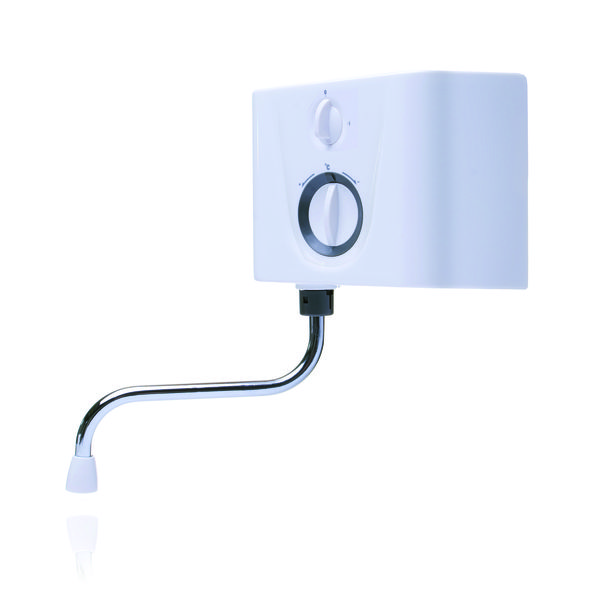

Manual Unit
• Separate on/ off and temperature and flow rate control
• No need to re-calibrate flow rate every usage
• Correct temperature instantly achieved every time

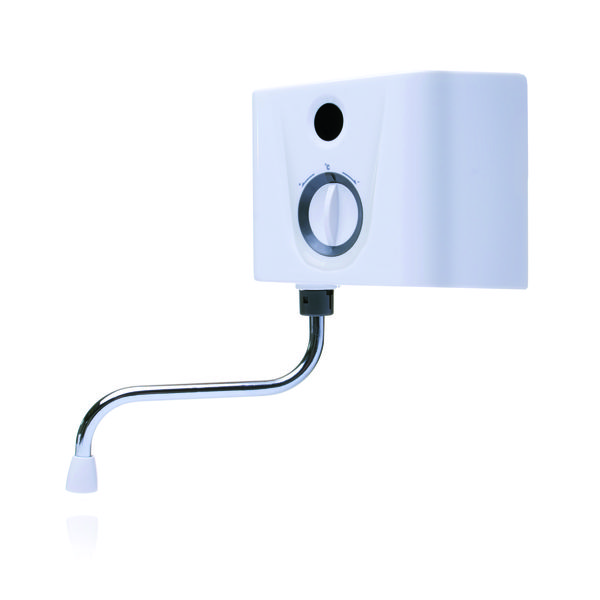

Automatic Unit
• Automatic no touch operation
• Manual temperature and flow rate control
Technical Specification
Outer Casing
Easy clean high impact Polycarbonate/ ABS
Heating Element
Copper-sheathed coil
Water Container
Glass reinforced nylon
Controls
On/ Off:
HW30M Rotary switch
HW30A Automatic no touch operation
Temperature Selection:
HW30M and HW30A Rotary dial
Safety
Self re-setting thermal cut-out set at 60°C.
Manual resettable cut-out set at 90°C.
Pressure relief valve to prevent high-pressure build up.
Temperature stabilised – unit maintains consistent outlet temperature as water pressure conditions vary.
IP Rating
IPX4
Installation
The appliance must be installed in a frost free environment.
Wall mounted. Base assembly is secured to the wall by two fixing screws. Full fixing pack supplied.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 1 bar.
Maximum water pressure 6 bar.
Water Connection
Inlet 1 x 15mm compression.
Outlet 1 x push fit chrome plated brass spray arm 200mm (8").
ONLY USE THE FITTINGS SUPPLIED SO THAT THE UNIT IS NOT PRESSURISED.
Fittings required (not supplied): none.
Electrical Connection
Installation must comply with current IEE regulations
This product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Approvals
CE, UKCA
Standard Warranty
1 year parts or replacement warranty.
Data Tables
| Product Code | Power (kW) | On/ Off Control | Max Flow Rate (l/m) Hand wash * | Standing Loss (kWh/day) |
|---|---|---|---|---|
| HW30M | 2.84 | Manual | 1.7 | 0.0 |
| HW30A | 2.84 | Auto | 1.7 | 0.0 |
*Flow rate based on incoming water supply temperature of 13°C, hand wash at 38°C

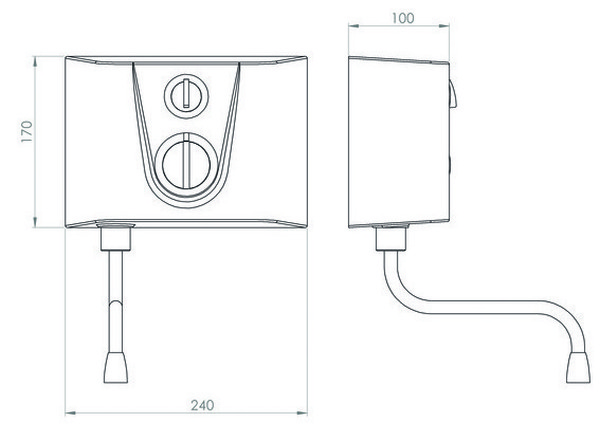

| Product Code | Height* (mm) | Width (mm) | Depth * (mm) | Weight Empty (kg) |
|---|---|---|---|---|
| HW30M | 170 | 240 | 100 | 1.5 |
| HW30A | 170 | 240 | 100 | 1.5 |
*Dimensions excluding spout.
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| HWSPOUT-1 | Wave spout | HW30M, HW30A |
| HWSCREWPACK | Wave wall mounting screw pack | HW30M, HW30A |
