Cyclone
1.6 kW Automatic
Traditional
Usage:
The Cyclone is a popular choice for projects requiring basic effectiveness and reliable performance, making it suitable for a range of applications. Where specification is for a challenging environment which is sensitive to high air speeds, heat level and noise disruption this hand dryer is an ideal solution. This will avoid the necessity to consider a less hygienic option such as paper towels. Suitable for a wide number of applications including schools, offices, restaurants and shops.
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Traditional style
• Low air speed makes the hand dryer suitable for young school children
• Metal case
• Stylish design in ivory white
• 1.6 kW power rating
• Vandal resistant
Technical Specification
Outer Casing
White metal case
Heating Element
1500 W
Motor
100 W
Carbon brush
2850 RPM
Current
7 amps
Air Speed
12 m/s
Air Volume
181 m3/h
Operation
Touch free automatic.
Safety
Overheat temperature protection.
Safety timer prevents continuous running.
IP Rating
IPX1
Installation
Full fixing pack supplied.
Cable entry bottom right at the base of the unit.
Electrical Connection
Installation must comply with current IEE Regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1m).
Class I
Approvals
CE, UKCA
Standard Warranty
3 year parts or replacement warranty.
Data Tables
power consumption 13.3 kWh per 1000 dries
| Product Code | Finish | Power (kW) | Sound Level (dB) | Dry Time (seconds) | Air Speed (m/s) |
|---|---|---|---|---|---|
| HD1600 | Ivory white | 1.6 | 73 | 30 | 12 |

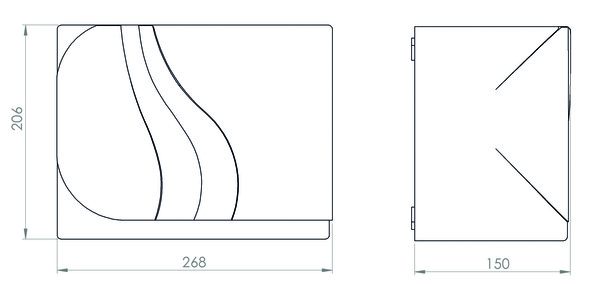

| Product Code | Height (mm) | Width (mm) | Depth (mm) | Weight (mm) |
|---|---|---|---|---|
| HD1600 | 206 | 268 | 150 | 3.5 |
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| HD1600COV | Cover for Hurricane 1600 | HD1600 |
| HD1600ELEMENT | 1.6kW element for Hurricane 1600 | HD1600 |
| HD1600PCB | PC Board including sensor for Hurricane 1600 | HD1600 |
| HD1600SCREWPACK | Wall mounting screw pack for Hurricane 1600 | HD1600 |
