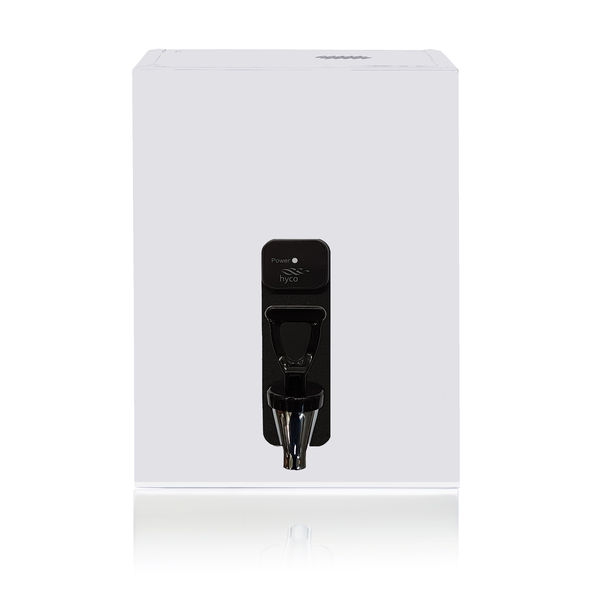

Microboil
Wall Mounted Boiling Water Heater
3, 6, 8, 16 and 25 litre
Usage:
Provides instant boiling water for preparing hot drinks in the workplace.
Click here to view our Wall Mounted Boiling Water Key Points Card
- Features
- Technical Specifications
- Data Tables
- Spares
Features
Features
• Time saving – provides instant hot water so no need to wait for the kettle to boil
• Space saving – frees up worktop space by eliminating the need for a kettle
• Energy saving – no energy wasted boiling more water than is required
• Sophisticated electronics maintain a constant supply of hot water – even when the unit is automatically re-filling after heavy usage
• Stylish and compact design
• Simple to use and easy to install
• Heavy duty catering style chrome tap with lock-on option
• 1 year on-site warranty as standard
• 3 year on-site warranty available on request at additional cost
• It is highly recommended that a filter system is fitted to protect against limescale build up. Units may need to be de-scaled regularly. Scale damage is not covered by the warranty (see Drinking Water Filter page).
Technical Specification
Outer Casing
White powder coated steel
Heating Element
2.4 kW, Incoloy-sheathed type element
Thermostat
Electronic to control water up to boiling point
Water Tank
Copper
5 year corrosion guarantee
Insulation
Polystyrene
Microboil Filter System
Optional extra – highly recommended.
See Drinking Water Filter page for filter options.
IP Rating
IPX0
Recovery Rate
Recovery rate 140 cups/ 94 mugs cups per hour for all models based on 167 ml cup and 250 ml mug.
Installation
Install over a draining board, or work top fitted with a drip tray.
At least 40mm clearance must be left above the unit to allow later removal of the jacket for service.
Plumbing
Must be installed by a suitably qualified person.
Minimum water pressure 1 bar.
Maximum water pressure 12 bar.
Water Connection
Inlet/ Outlet 2 x 1/2" BSP male. Fittings required (not supplied): 2 x 15mm compression to 1/2" BSP female adaptor.
1 x tundish recommended.
Electrical Connection
Installation must comply with current IEE regulations.
The product should be connected to the fixed wiring of the property via a double pole fused spur with a minimum break capacity of 13 amps.
Cable pre-wired (1.5m) to the bottom left.
Maintenance
it is recommended the unit is descaled every 6 months.
Approvals
CE, UKCA, KIWA, WRAS
Standard Warranty
1 year on-site warranty as standard.
3 year on-site warranty available at additional cost
Data Tables
| Product Code | Capacity (litres) | Initial Draw Off (cups/ mugs)* | Heat Up TIme (mins) |
|---|---|---|---|
| MBS3 | 3 | 18/ 12 | 8 |
| MBS6 | 6 | 36/ 24 | 15 |
| MBS8 | 8 | 48/ 32 | 21 |
| MBS16 | 16 | 96/ 64 | 41 |
| MBS25 | 25 | 150/ 100 | 64 |
*Initial draw off based on 167 ml cup and 250 ml mug.

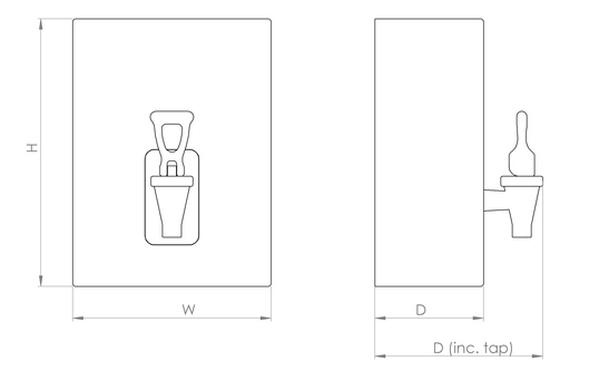

| Product Code | Height (mm) | Width (mm) | Depth (mm)* | Weight (kg) Empty | Weight (kg) Full |
|---|---|---|---|---|---|
| MBS3 | 370 | 269 | 153 | 5.6 | 8.6 |
| MBS6 | 420 | 312 | 171 | 7.2 | 14.8 |
| MBS8 | 510 | 312 | 171 | 8.7 | 17.2 |
| MBS16 | 545 | 364 | 218 | 10.8 | 28.8 |
| MBS25 | 550 | 414 | 264 | 12.3 | 37.8 |
*Depth excludes the tap, for depth including tap add 90mm
Spares
Spare parts are available through our stockists.
A list of spare parts available for our current range is shown below.
For further help or advice please contact our customer services team on 01924 225 200 - we can usually help, for example, help diagnosing which part you need, help if you require spare parts for obsolete models or if you need fast delivery.
| Product Code | Description | Spare Parts for Product Code |
|---|---|---|
| MBELEMENT | Microboil element for 3 and 6 litre models | MBS3, MBS6 |
| MBELEMENT16 | Microboil element for 8, 16 and 25 litre models | MBS8, MBS16, MBS25 |
| MBSTAP | Microboil standard tap assembly (includes black handle and internals) | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBTAPSET | Full tap set for Microboil (includes black handle and chrome spout) | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPTAPSURROUND | Microboil tap surround (tap backplate) | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBTAPDIAG | Microboil diaphragm for tap assembly | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBSOLENOID | Microboil solenoid valve | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPPCBOARD | Microboil PC Board | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPCAPSEALKIT | Microboil cap seal kit | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPLEVEL | Microboil level probe | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPLEVELTUBE | Microboil level probe silicon tube | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPTHERMISTER | Microboil thermister | MBS3, MBS6, MBS8, MBS16, MBS25 |
| MBPVENT | Microboil inlet/vent tube | MBS3, MBS6, MBS8, MBS16, MBS25 |
